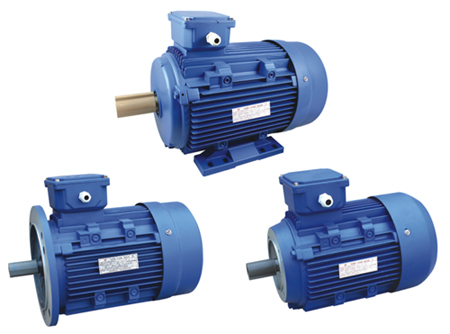

Y3 series three-phase asynchronous motors, developed with new techniques. Aluminium body
Y3 series motors are defined as totally enclosed, fan cooled, squirrel cage type and noted for their novel design, beautiful model, compact structured, low noise, high efficiency, large torque, excellent starting performance, easy serving, etc. The motors are adopted with F class insulation and designed with assessing method for insulation system according to international practice, it enhances greatly have reached an international advanced level of the same kind ofproducts at the initial days of the 90s.

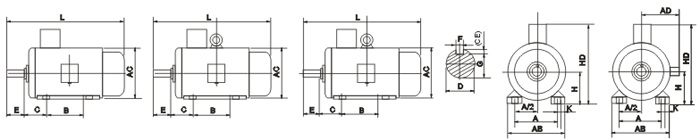

Y3 series motors can be widely used as driving equipments of various machineries, such as machine tools, blowers, pumps, compressors, transporters, agricultural and food processing. Pedestal installation size and centre height and other indexes of the motor completely measured by Y3 series three-phase asynchronous motor. |
|
Operating Conditions
Ambient temperature: -15桫40
Altitude: Altitude should be higher than 1000 metres above sea level.
Rated voltage: 380V,400V,415V,440V.
Rated frequency: 50Hz,60Hz.
Connection: Y Star-connection for 3kw
Duty/Rating: Continuous (S1) . or less whereas and delta-connection. the temperature rise of the stator winding is examined at 80K (by resistance method).
Insulation class: F,
Protection class: IP55.
Cooling method: Ic411. |
 |
|
