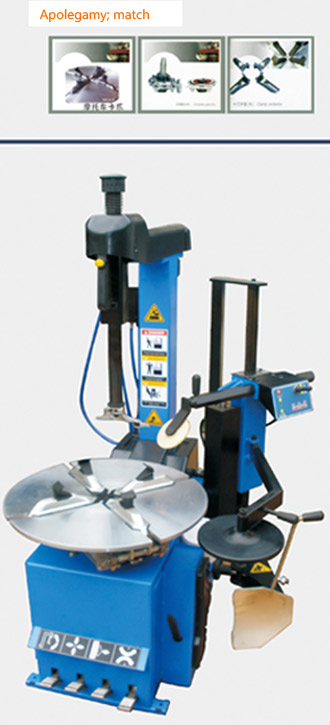

FD—226 TRUCK TYRE CHANGER
Features
●Pneumatically operated tilting column
●Simultaneous pneumatic horizontal and vertical arm locking
●Capable of handling stiff,wide and low-profile tire
●Right help arm
●Pneumatic bead breaker
●Rear air tank serves as tubeless tire inflating device
Technical Specification
Motor power
|
0.75kw/0.55kw/1.1kw |
Power supply
|
220V/400V/110V |
|
Max.wheel diameter
|
41"(1040mm) |
| Max.wheel width |
14"(355mm) |
Outside clamping
|
10"-22" |
| Inside clamping |
12"-24" |
| Air supply |
8bar |
| Bead breaker force |
2500kg |
| Noise level |
141kg/184kg |
| Package size |
60*760*1030mm(main body)1230*450*350mm(help arm) |
| Weight |
277/297Kg | |
