BL-503

Home » Products » AUTO BEAUTY

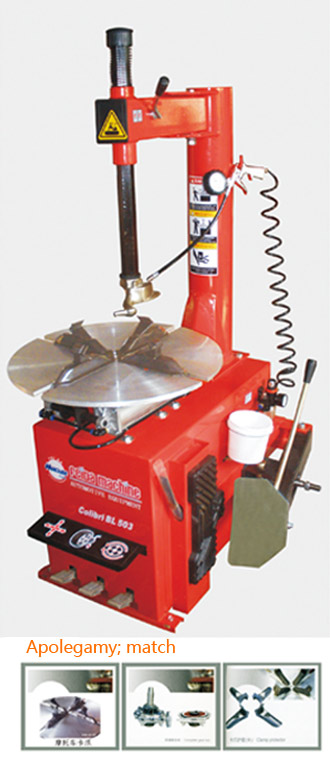

BL-503 TYRE CHAN



Features
●Suitable for both cars and motor cycles.
●Pubber-pad mount/demout head.
●Semi-automatic tyre change with sideward moving arm.
●The cylinder is made of stainless steel,suits various gas sources to feed air and keeps the air pressure,reduces the air resistance,rust and other malfunctions,extends its life.
●High quality anti-friction micro-fusion alloy mounting/demounting head protects rim and tyre from damage when working.
●The reductiong gear box uses durable alloy to improve wear ability of the machine and during the operation with low noise level.

TECHNICAL DATA

Max.wheel diam 34"(900mm)
Max.wheel width 10.5"(270mm)

External locking rim diam

(5)12"-19"(310-508mm)
Internal locking rim diam (5)10"-17.5"(24)
Working pressure 0.7-1.2MPa
Bead breaker pressure 2000kg
Power supply 220V/380V 50Hz
Motor power 1.1Kw/0.75Kw
Weight 190kg
